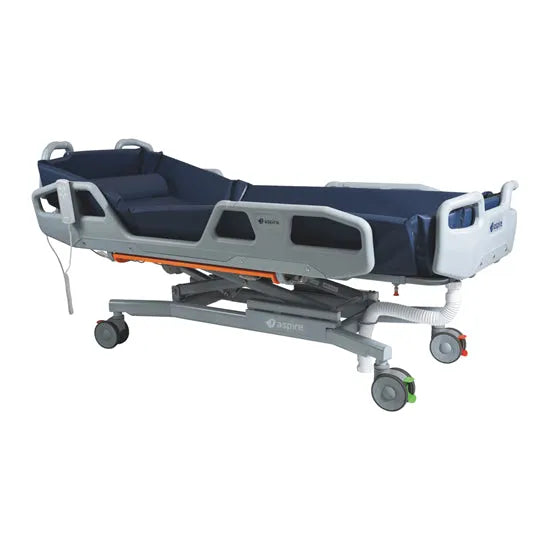

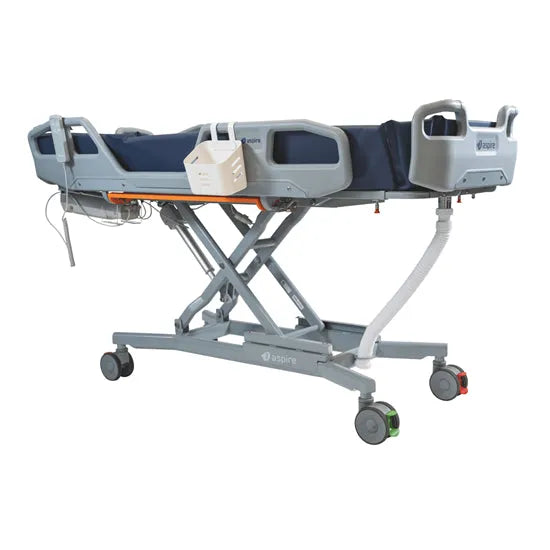

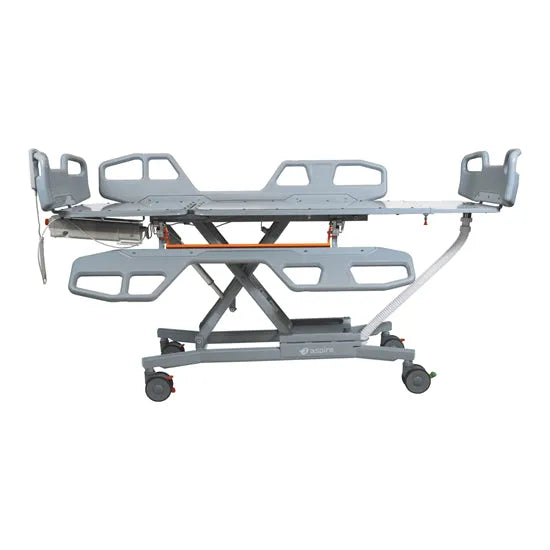

Aspire Electric Shower Trolley

🛁 Product Description

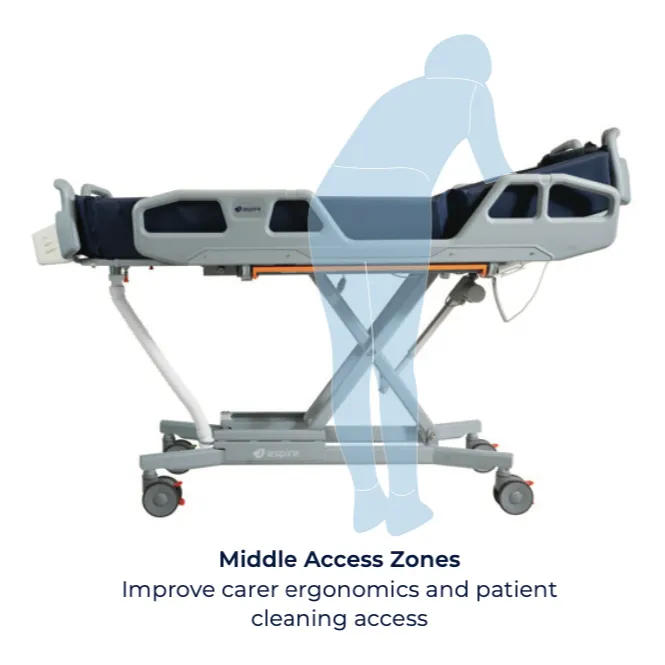

The Aspire Electric Shower Trolley is a premium care solution, engineered to assist with safe, hygienic patient showering in both healthcare and home care settings. Designed for carer and patient comfort, this electric trolley features a stainless steel frame, smooth electric controls, and a padded PU liner with adjustable backrest and tilt. With a safe working load of 200kg and electric positioning features, it facilitates easier transfers, superior hygiene access, and safe water drainage. The trolley is ideal for use with slide boards and lifters, offering three side rail positions and removable battery functionality for flexible operation.

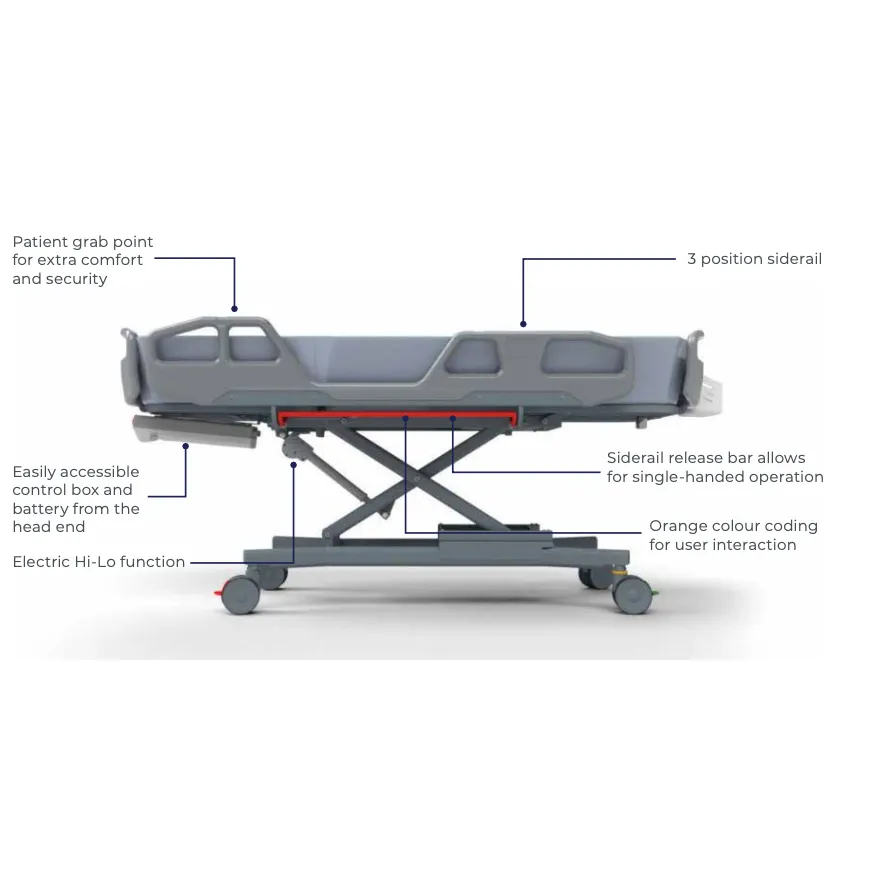

✨ Key Features

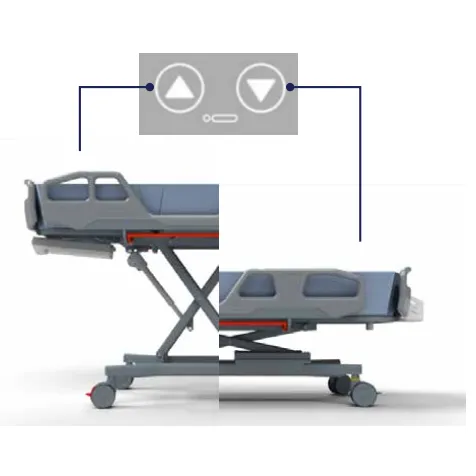

• 🛠️ Electric Hi-Lo Function – Height adjusts from 460mm to 900mm for ergonomic carer access

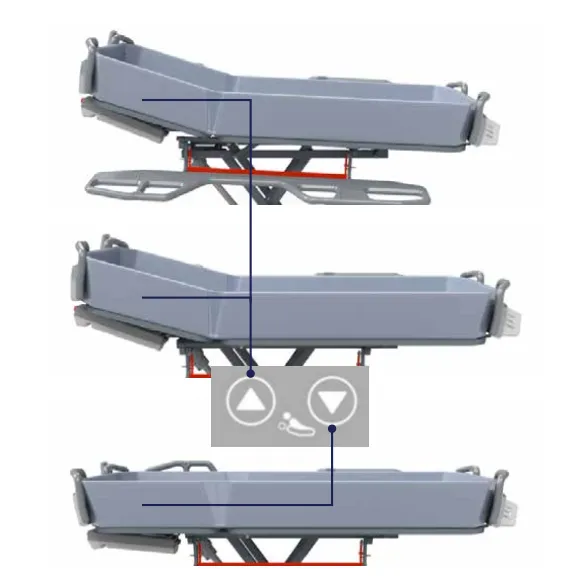

• 🪑 Electrically Adjustable Backrest – Up to 15° angle for improved patient comfort and posture

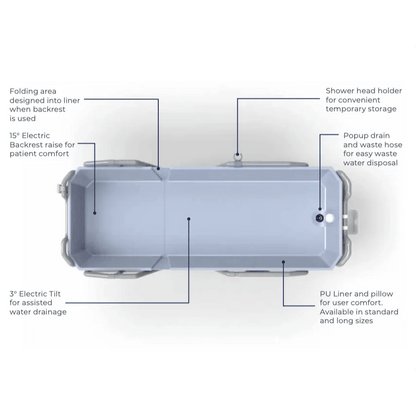

• 💧 Assisted Drainage Tilt – 3° tilt angle supports water flow toward drain outlet
• 🔋 Rechargeable Battery System – Quick-release battery and charger cradle included

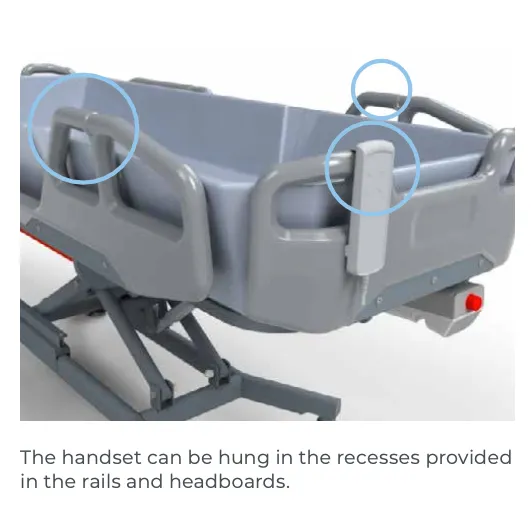

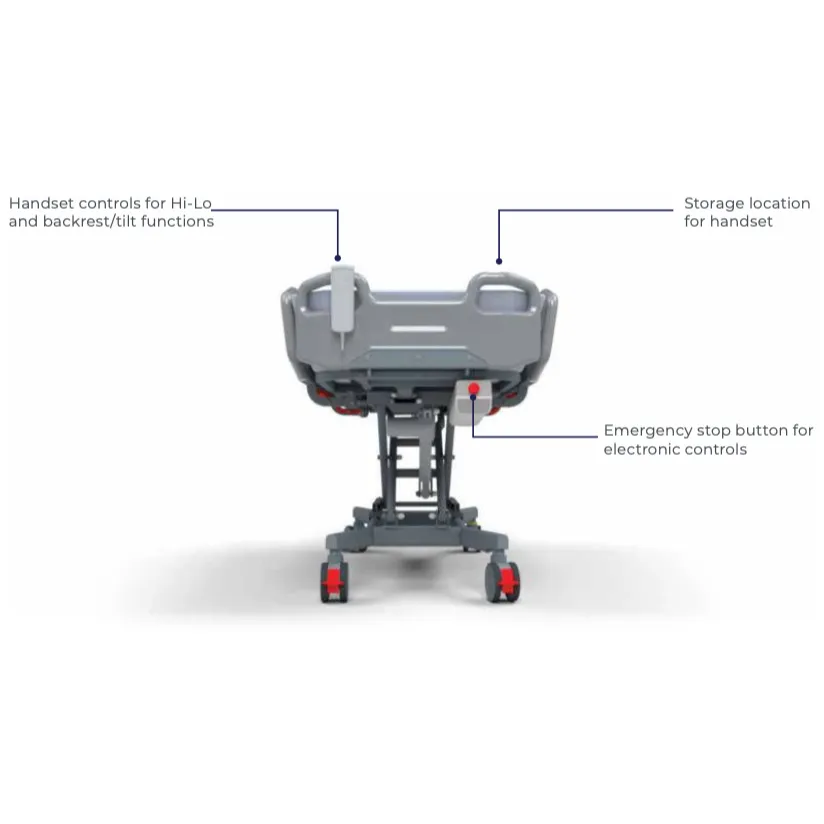

• 🖲️ Hand Control – Mountable on all four sides via integrated notches

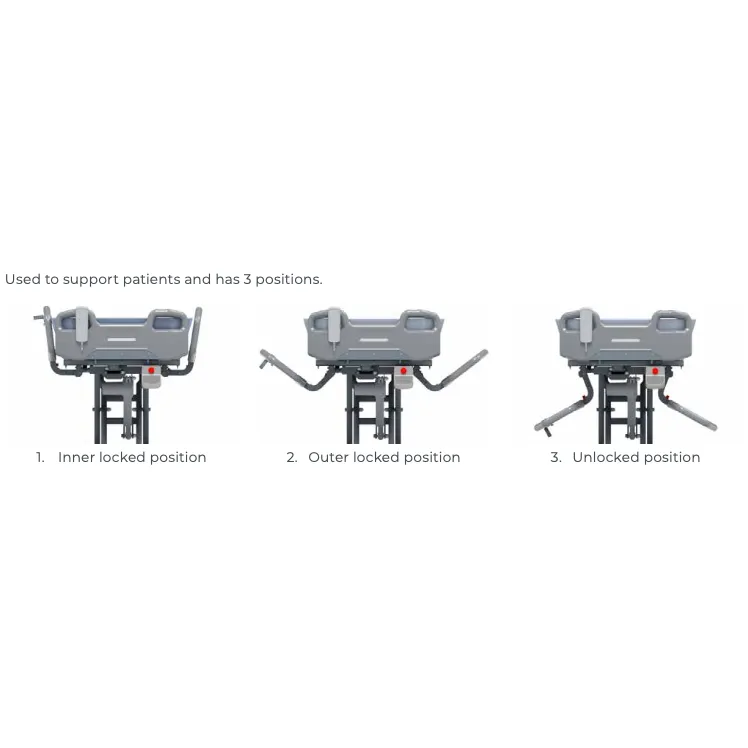

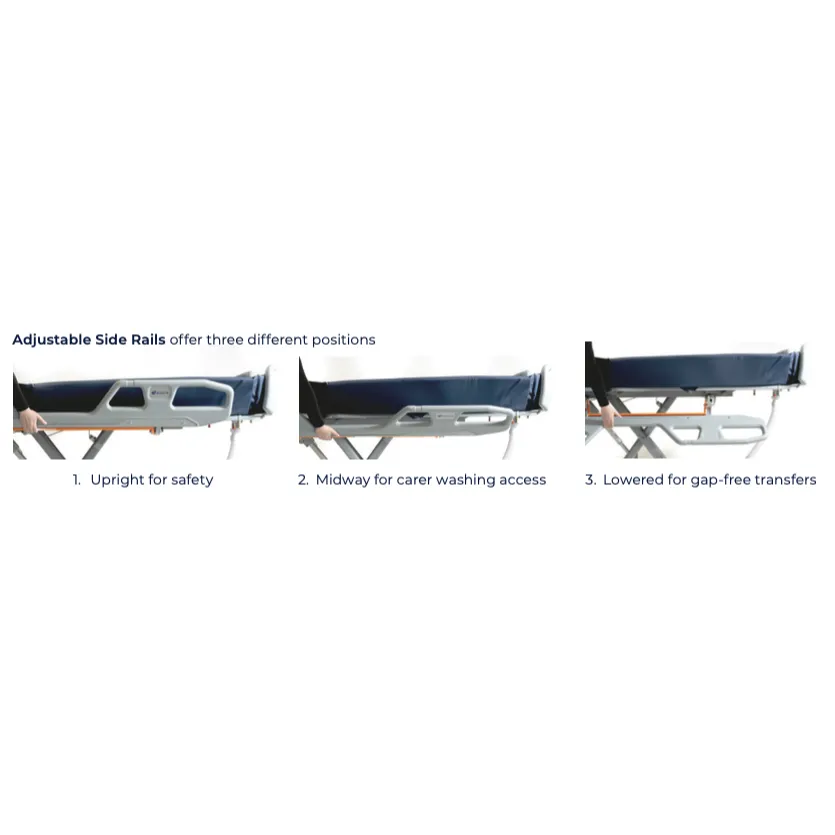

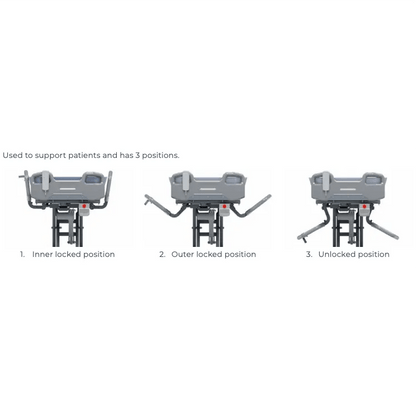

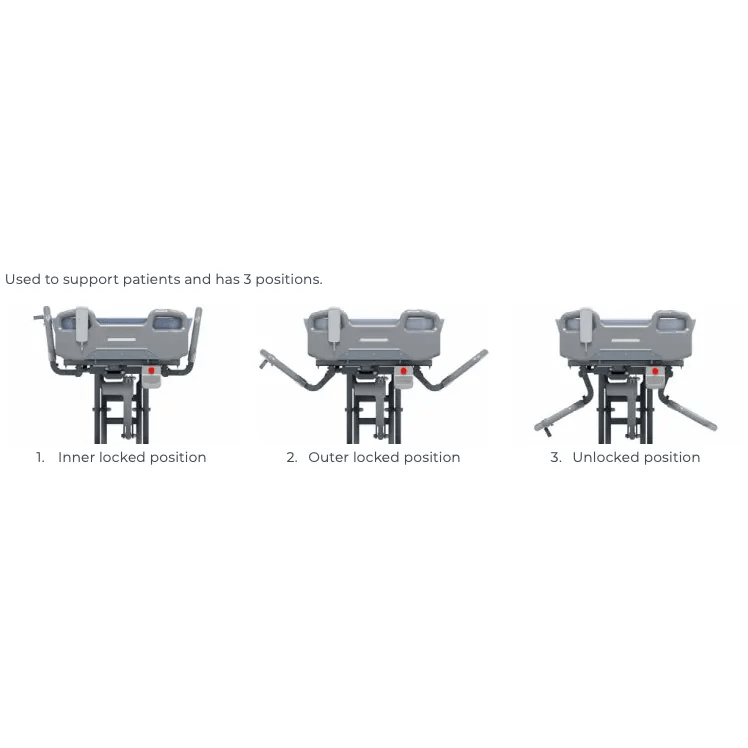

• 🔓 Three-Position Side Rails – Upright for safety, Midway for carer access, Lowered for transfers

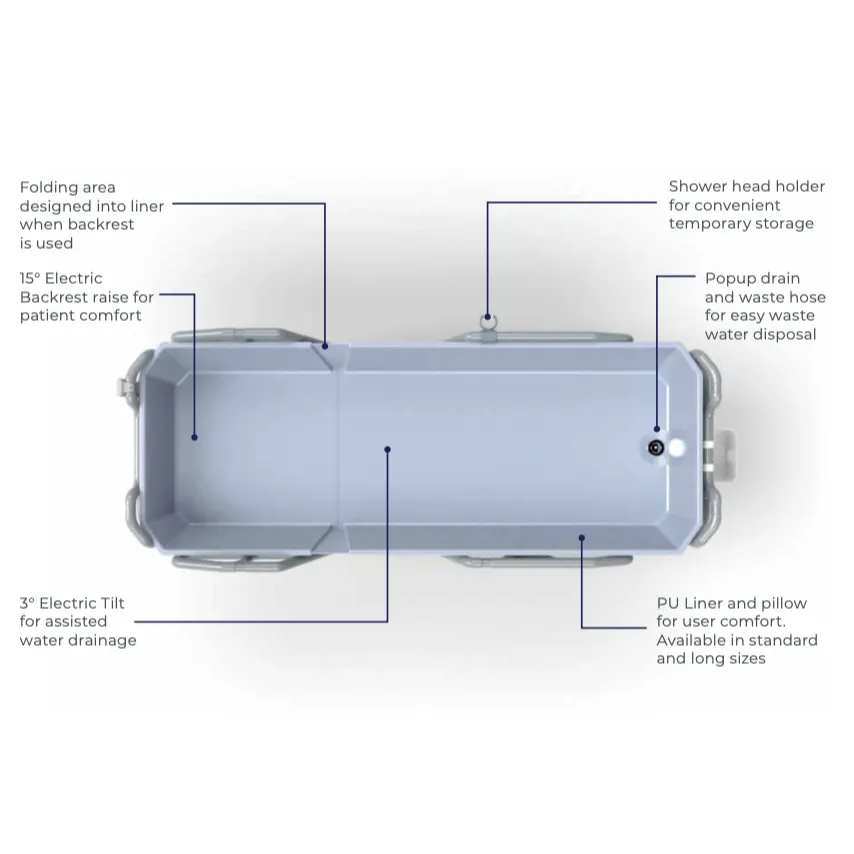

• 🧼 Comfort PU Shower Liner – Soft-touch surface with liner pillow, removable for easy cleaning
• 🚿 Shower Head Holder – Adjustable positioning on siderails for convenience

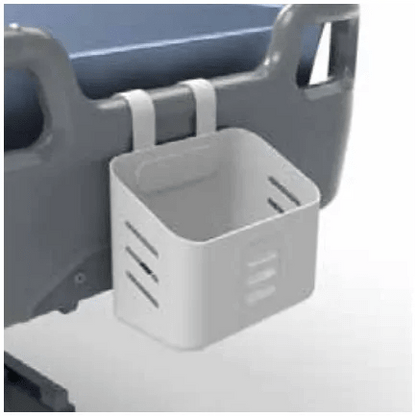

• 🧺 Accessory Basket – Optional basket hooks directly onto siderail
• 📏 Deck Extension Available – Extendable platform with longer liner option for taller patients

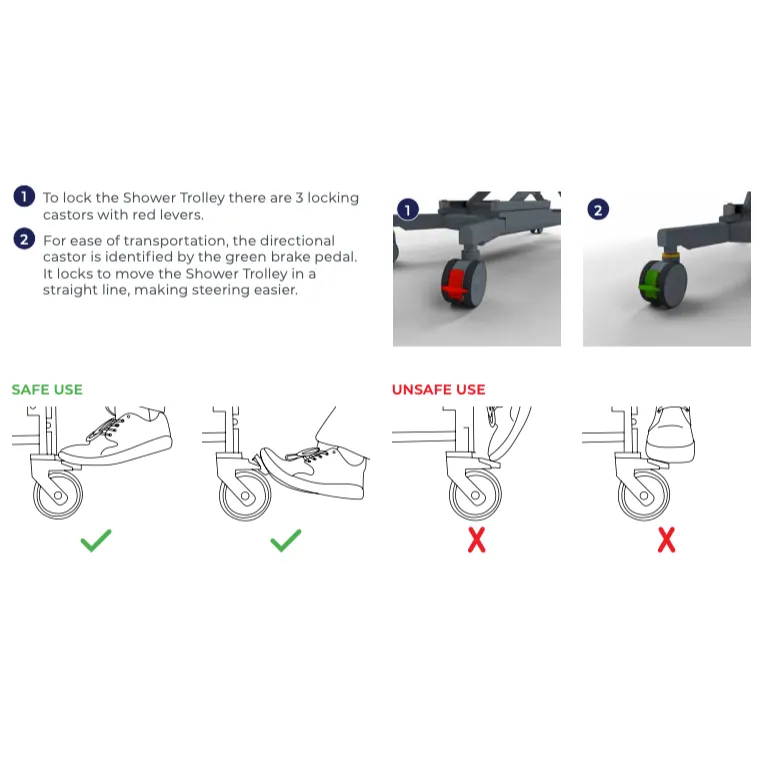

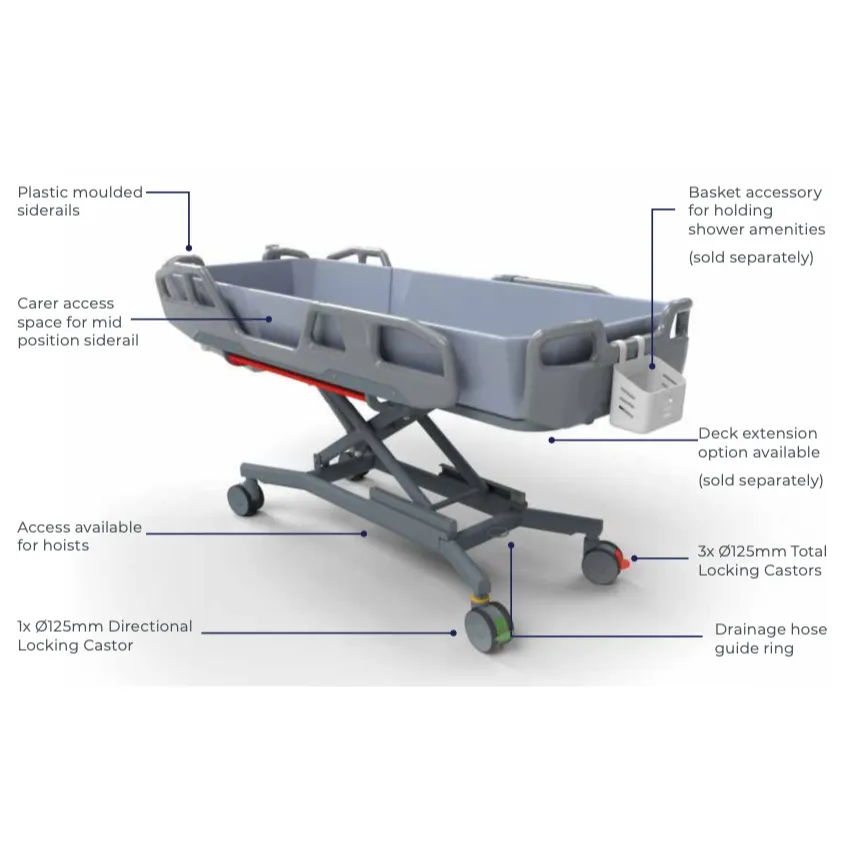

• 🛞 Castor Wheels – 3x total lock castors + 1x directional lock for ease of transport

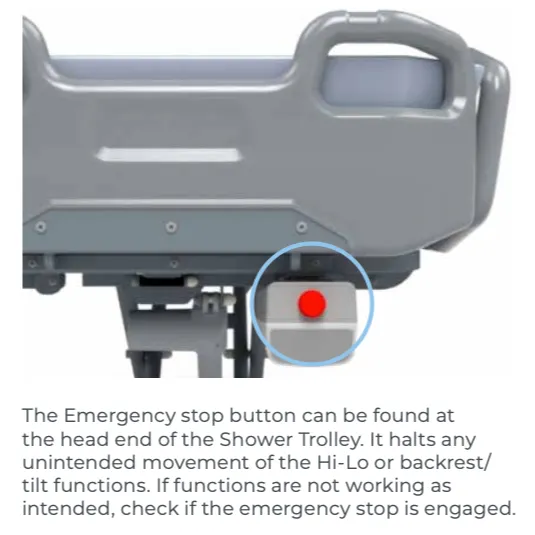

• 🛑 Emergency Stop Button – Located at head end to stop all electrical movement instantly
• 🔧 Easy Assembly – Side rails, head/foot boards and liner install with minimal tools

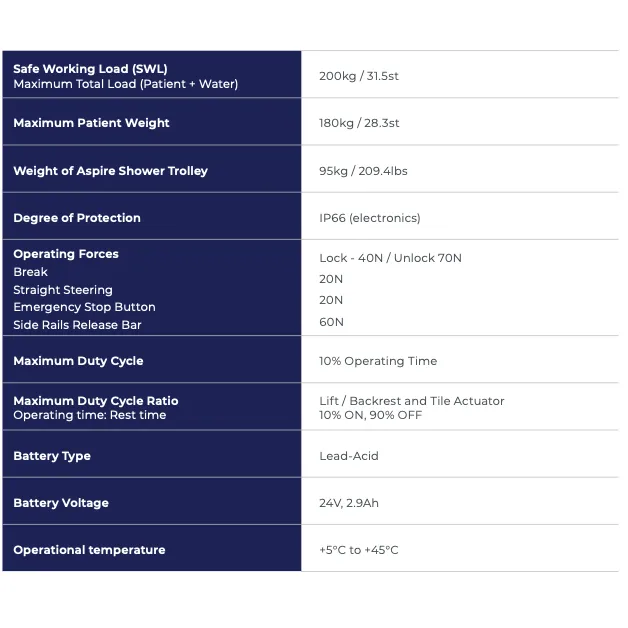

📐 Specifications

• Product Code: BTS148112
• Safe Working Load (SWL): 200kg / 31.5st (including water + accessories)
• Max User Weight: 180kg / 28.3st
• Total Length: 2005 – 2205 mm
• Overall Width: 820 mm
• Platform Height Range: 460 – 900 mm
• Backrest Range: 0 – 15°
• Tilt Angle: Up to 3° (forward)
• Weight: 95 kg
• Battery: 24V 2.9Ah Lead-Acid, IP66 protection
• Duty Cycle: Max 10% (1 min ON, 9 min OFF)
• Operating Temp: +5°C to +45°C
• Turning Radius: ⌀2064 mm
• Castor Size: Ø125 mm

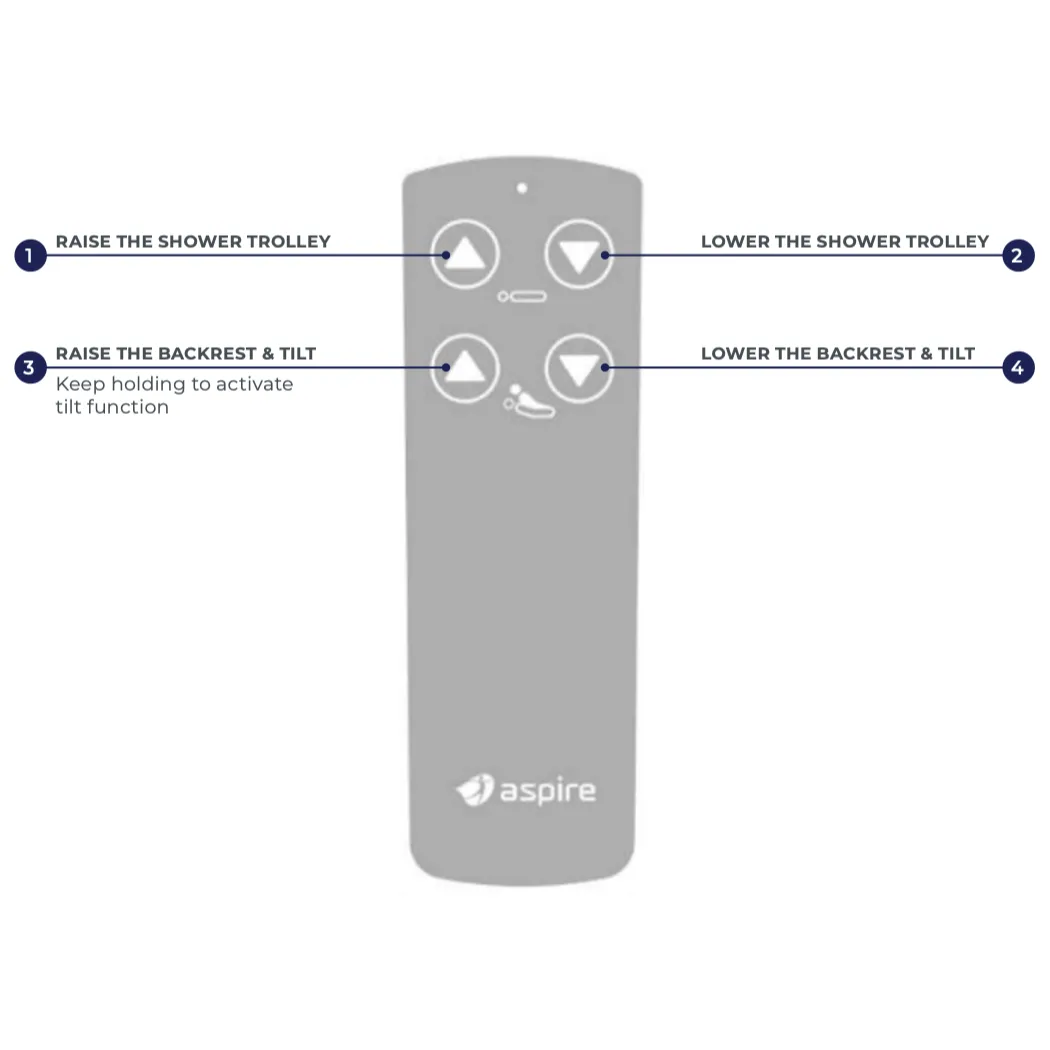

• Backrest & Tilt Operation: Via handset control

🧩 Optional Accessories

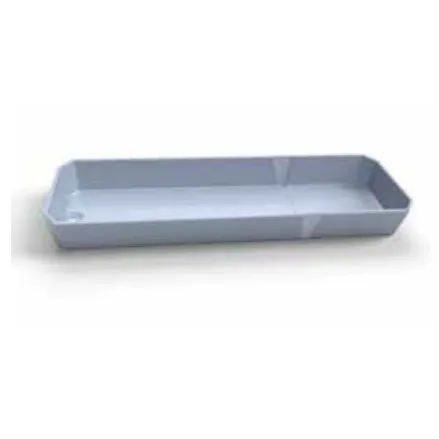

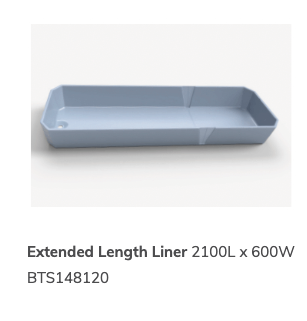

• 📦 Extended PU Liner – 2100mm x 600mm (BTS148120)

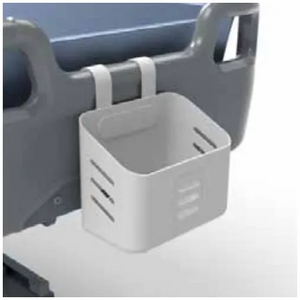

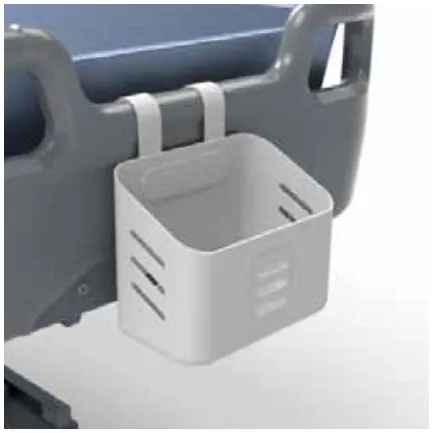

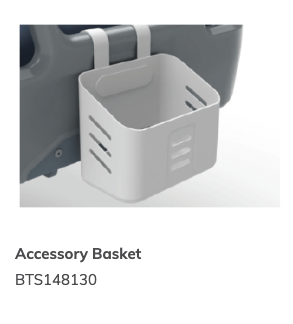

• 🧺 Accessory Basket – Clips onto side rail (BTS148130)

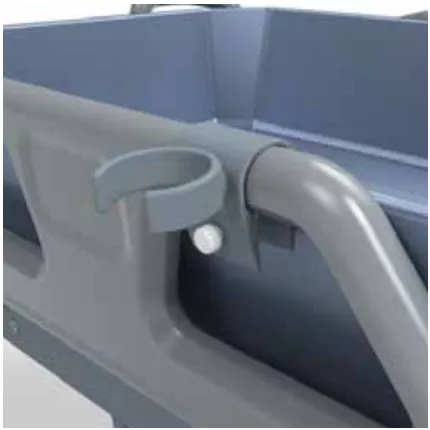

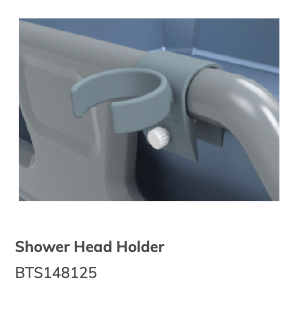

• 🚿 Shower Head Holder – Adjustable, removable holder (BTS148125)
• 📏 Deck Extension Hardware – Converts trolley for taller users (BTS148140)

📦 In the Box

• ✅ Aspire Electric Shower Trolley

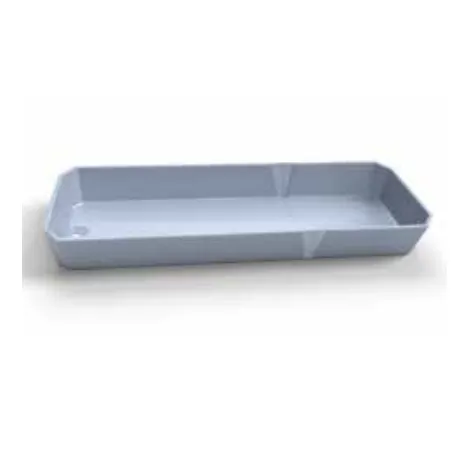

• ✅ Standard PU Shower Liner with Pillow
• ✅ Battery + Charger Cradle
• ✅ Hand Control Unit
• ✅ Drainage Assembly (with pop-up waste)

🧑⚕️ Use Cases

• 🏥 Hospital or residential facilities managing daily hygiene with full support
• 🧓 Aged care clients needing assisted showering and safe transfers
• ♿ Disability support where patients use lifters or transfer boards
• 🏡 Home care settings requiring ergonomic equipment for carers

🧼 Cleaning & Maintenance

• 🧽 Clean PU liner with warm soapy water and soft cloth
• ⚠️ Avoid abrasive cleaners or harsh chemicals
• 🛠️ Frame should be cleaned after each use with mild detergent
• 🔍 Weekly checks: brakes, castors, frame, electronics & liner
• 🧰 Annual service recommended by qualified technician

🛡️ Warranty

• 🗓️ 5 Years – Frame
• 🗓️ 3 Years – Electronics
• 🗓️ 1 Year – Components, Hand Control, Cables

📄 Brochures & Manuals

• 📘 Product Flyer – Aspire Electric Shower Trolley
• 📕 User Manual – Aspire Electric Shower Trolley
