Product details
KEY FEATURES

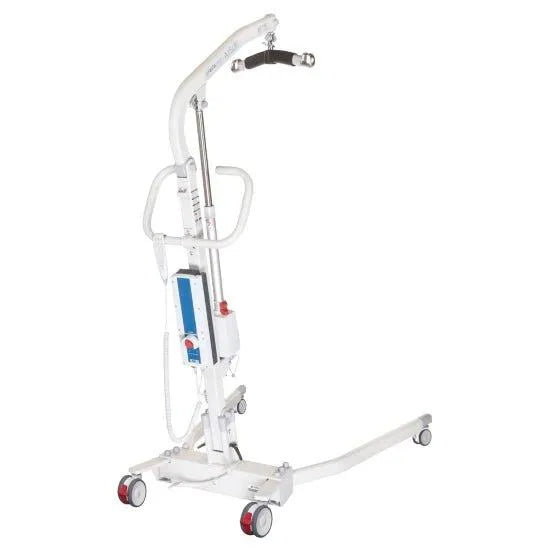

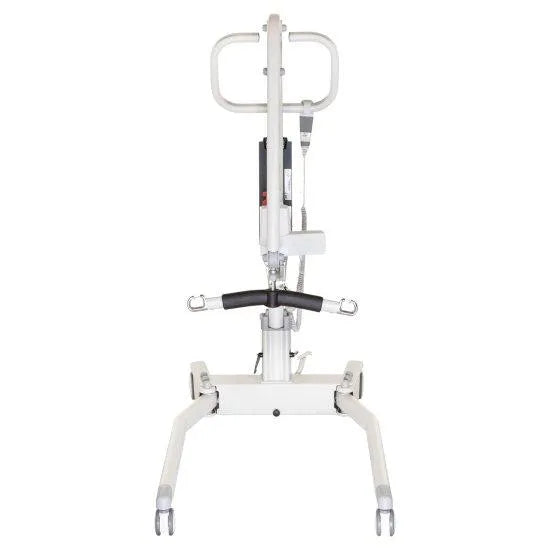

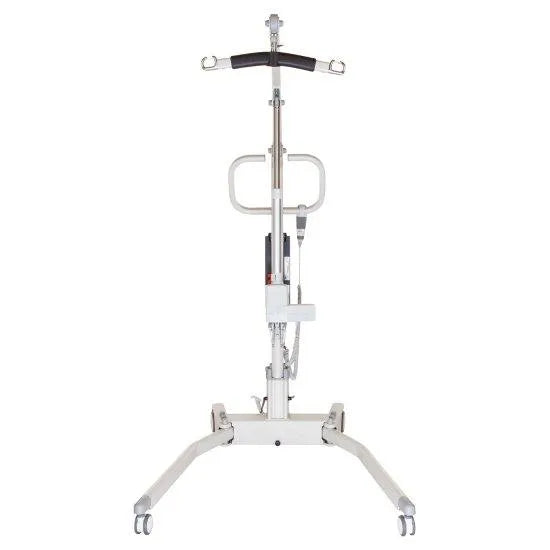

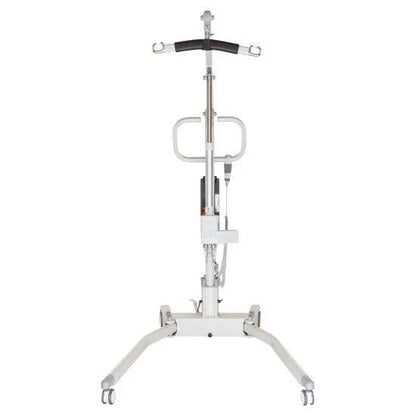

The Aspire 150F is a lightweight and portable folding patient lifter designed for home and community environments.

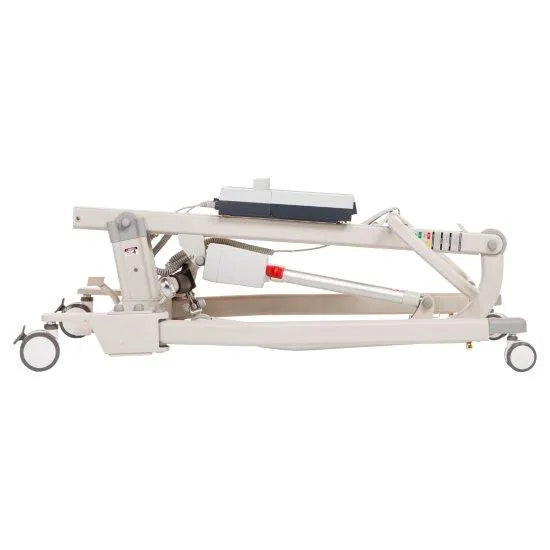

- Folds for Transport and Storage: Folds quickly and conveniently for storage or transport in the boot of the car
- Ergonomic Handset: The latest slimline technology from Linak fits neatly in the hand with an intuitive control panel. Battery and service indicator lights assist with service scheduling
- Off Set Leg Design: Provides additional accessibility around chairs and furniture in the home
- Leg Function: Simple foot operation to open or close legs for lifting stability or accessibility
- Quick Release Yoke Attachment: One touch release and attach mechanism, designed for the busy caregiver. Padded yoke for added patient safety
- Build Quality: Strong powder coated aluminium frame with industry leading Linak electronics and warranty provision
- Safety: Critical features include emergency stop button, emergency lowering and antientrapment technology, with both patient and caregiver safety at heart
- Intelligent Diagnostics: State of the art Linak Jumbo Care control system. Tracks usage and service requirements for safety and compliance
- Tente Casters:Β 2 x 75mm front castors for maximum under bed clearance and accessibility. 2 x 100mm rear locking castors for safety and manoeuvrability.
- Item Weight: 32.9 kg
- Tested and compliant to AS/NZS ISO 10535:2011 (the Australian standard for hoists)
Β
Β
SPECIFICATIONS
|
Product Code |
LSS390600 |
|
Product Description |
Lifter - Aspire A150F |
|
Material |
Aluminium |
|
Safe Working Load |
150 kg |
|
Base Length |
1280 mm (1220 mm folded) |
|
External Base Width |
660 - 1040 mm (615 mm folded) |
|
Internal Base Width |
580 - 950 mm |
|
Base Width Adjustment |
Manual |
|
Base Height Under Bed Clearance |
133 mm |
|
Minimum Height of Spreader Bar |
428 mm |
|
Maximum Height of Spreader Bar |
1640 mm |
|
Product Weight |
32.9 kg |
|
Under Base Height |
72 mm |
|
Maximum Overall Height |
1873 mm (395 mm folded) |
|
Front Castor Diameter |
75 mm |
|
Rear Locking Castor Diameter |
100 mm |
|
Turning Radius |
1365 mm |
|
Weight of Heaviest Part |
32.9 kg |
|
Handle Height |
1170 mm |
Β
Β
Β
BROCHURES
Lifter & Sling Brochure
A150F Lifter User Manual
Aidacare Aspire Inline Weigh Scale Flyer
Aidacare Aspire A150 Lifter Clinical Guide
