Aspire Elio Small Pull Apart Mobility Scooter

📝 Product Description

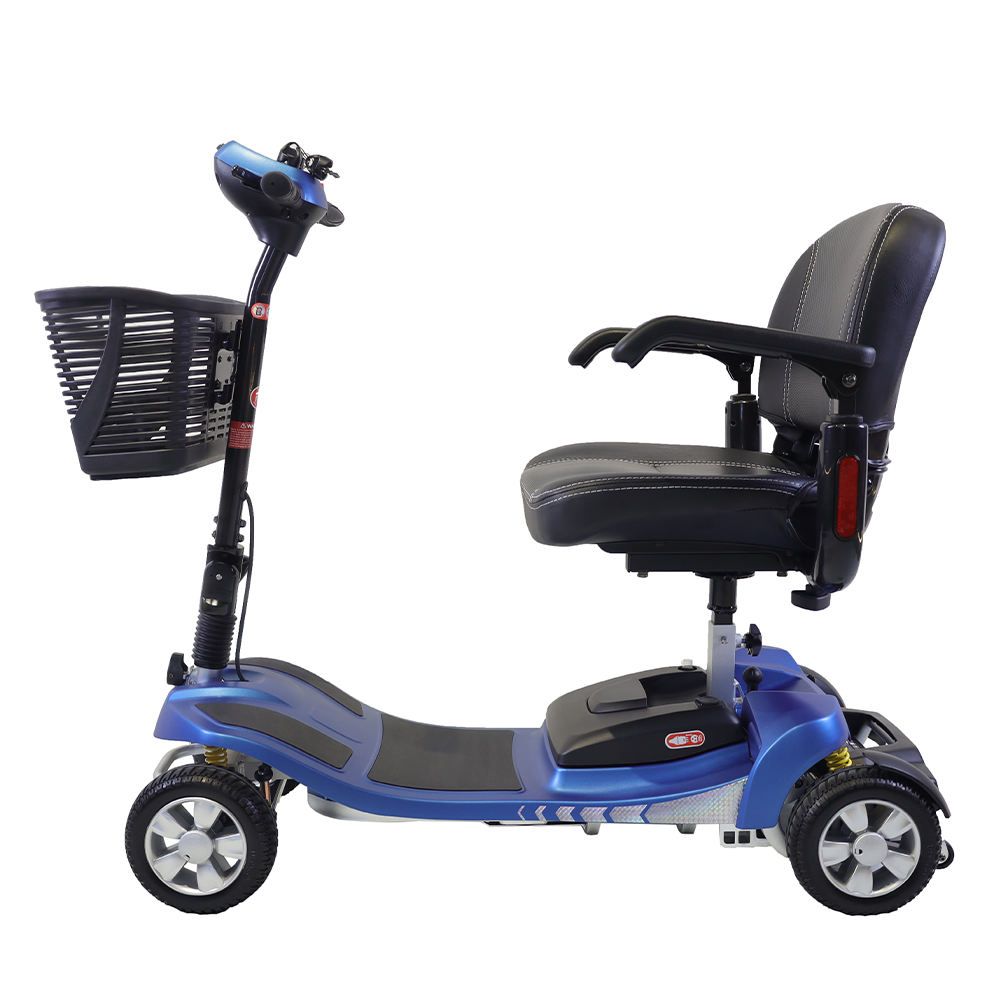

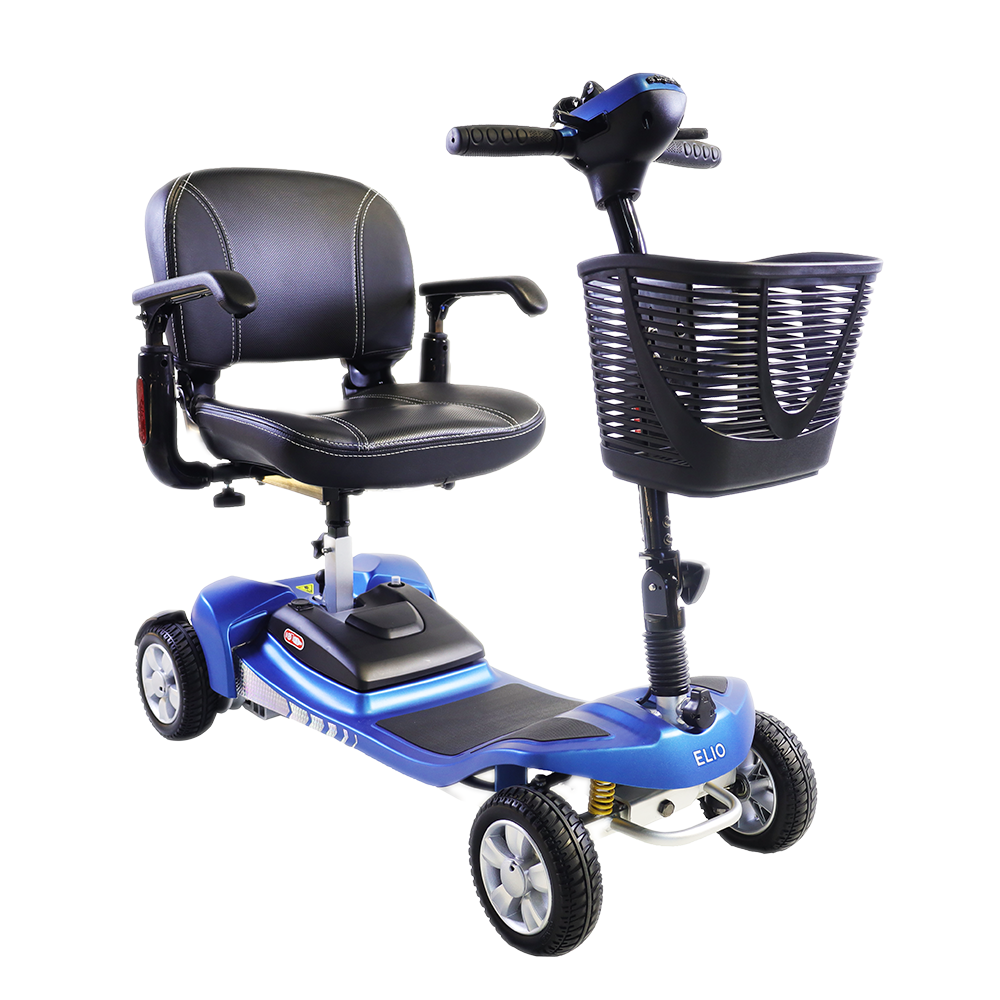

The Aspire Elio Compact Pull Apart Mobility Scooter is a smart, portable travel scooter designed for confident everyday mobility. Its ultra-lightweight aluminium frame quickly separates into five compact pieces for easy car-boot loading, while independent suspension and puncture-proof wheels smooth out uneven surfaces. An intuitive tiller with LED battery display and a swivel, height-adjustable padded seat make every trip simple and comfortable. ✨

✨ Key Features

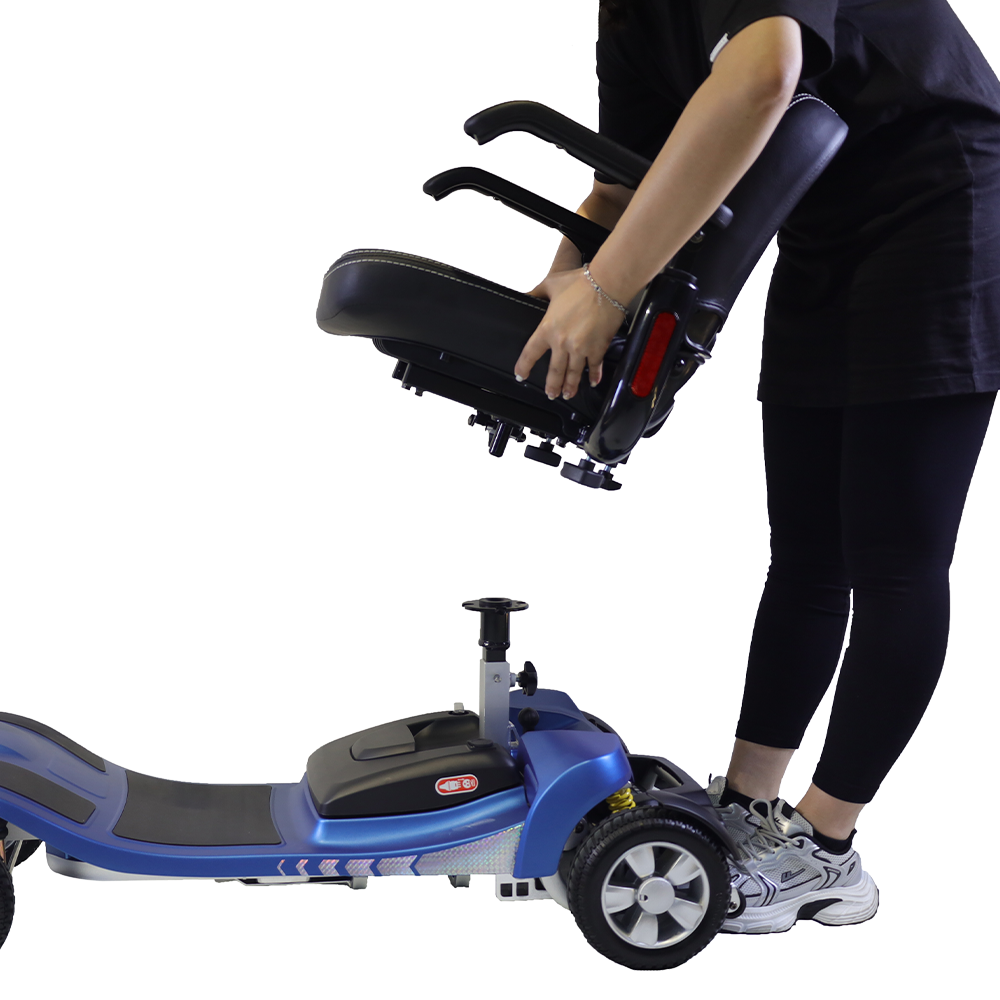

• 🧳 Fast pull-apart design — separates into five pieces so you can lift, pack, and go.

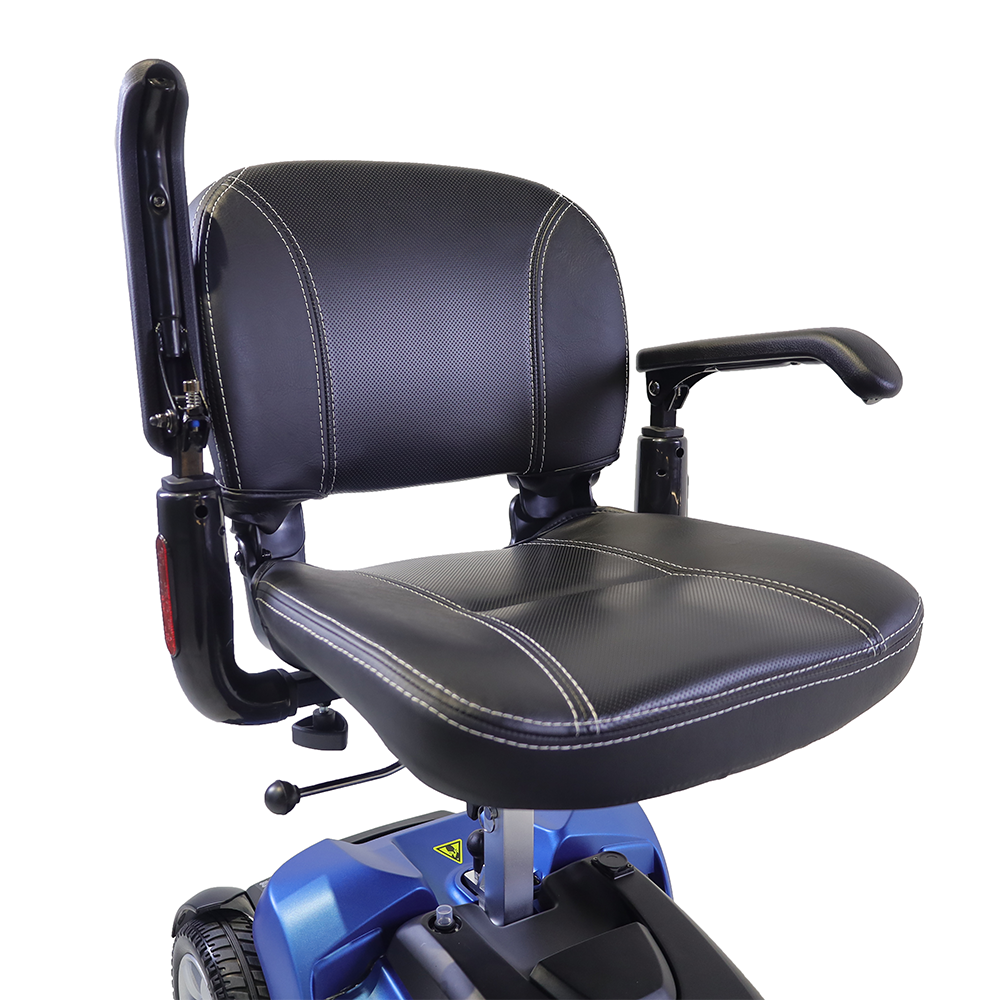

• 🪑 Comfortable transfers — swivel, height-adjustable seat and adjustable tiller for personalised setup.
• 🛞 Independent 4-wheel suspension with puncture-proof tyres for a smoother ride on sealed paths.

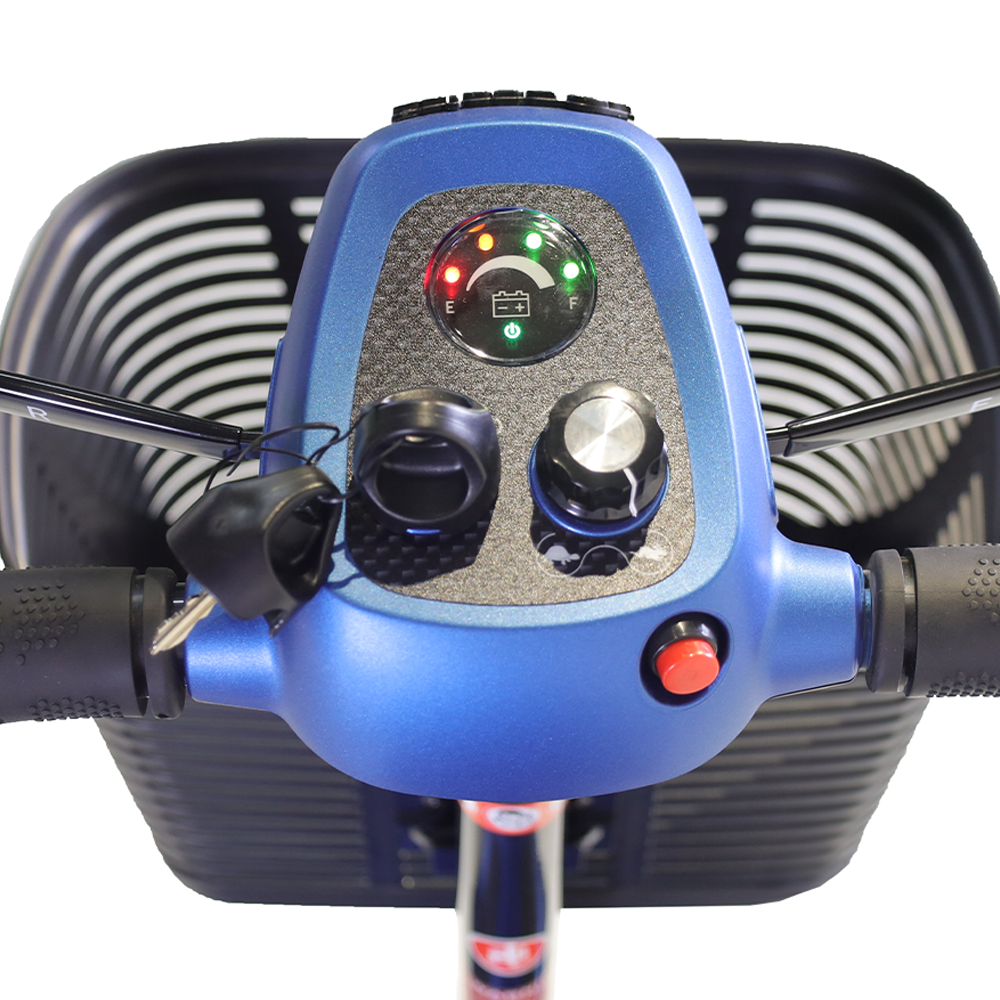

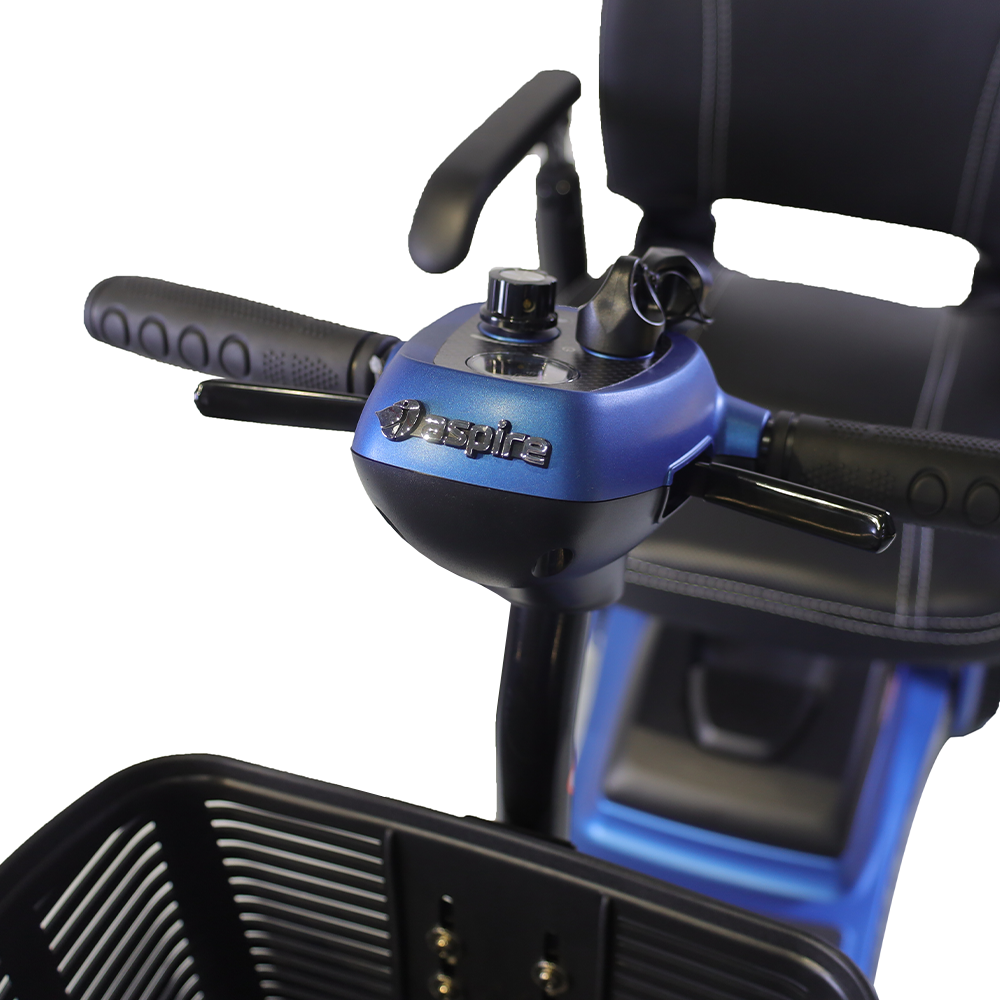

• 🧭 Easy controls — clear LED battery display, speed selector and horn on the dash.
• 🔋 Flexible battery options — standard lithium pack with optional airline-approved or extended-range packs.
• 🛑 Electromagnetic brakes & free-wheel mode for confident stopping and simple pushing when needed.
• 🎨 Colour options — Blue (SCT671700) or White (SCT671710).

🎯 Use Cases

• 🛍️ Shopping & social visits — compact footprint for aisles, lifts and tight indoor spaces.
• 🚗 Car travel — breaks down quickly so most users or carers can load it into a vehicle.
• 🏢 Apartment & village living — small turning circle helps in hallways and lobbies.
• ✈️ Flight-friendly option — choose the airline-approved battery for air travel (check airline policy).

📏 Specifications

• 🆔 Product Codes: SCT671700 (Blue), SCT671710 (White)
• 📐 Overall Size (L × W × H): 1048 × 550 × 945 mm
• 🔁 Turning Radius (min): 1200 mm
• 🧱 Ground Clearance: 60 mm
• 🏔️ Max Climbing Angle: 6°
• 🚀 Maximum Speed: 6.4 km/h
• 🔋 Battery (standard): 1 × 24 V 20 Ah Lithium
• 📶 Range: up to 24 km (optional extended-range battery up to 35 km; airline-approved battery ~11.2 km)
• 🛞 Tyres: 190 mm puncture-proof (front & rear)
• ⚙️ Motor: 270 W, 2-pole, brushed
• 🧠 Controller: PG 45 A
• 🛑 Brake System: Electromagnetic; Free-wheel mode: Yes
• 🔌 Charger: 24 V 2 A
• 🪑 Seat Size (D × W): 400 × 450–550 mm
• 🦶 Seat-to-Footrest Height: 400–475 mm
• 🧱 Armrest Height: 180 mm
• ⚖️ Safe Working Load (SWL): 136 kg
• 🏋️ Weights: Product (excl. battery) 28.6 kg; Heaviest piece 10.8 kg; Battery 3.2 kg; Total (incl. battery) 31.8 kg
• 🧩 Suspension: Independent 4-wheel
• 🎨 Colours: Blue, White
• 🪫 Optional Batteries: SCA669400 (airline-approved), SCA669410 (extended range)

🧾 Warranty & Resources

• 🕒 Warranty: Scooter frame, motors, axles & brakes — 2 years; Electronics — 1 year; Battery — 6 months.
• 📄 Aspire Elio – Product Flyer (PDF)
